AUDIOVISUAL / NOVASTAR
TB50
Content playback and scheduling for LED signage.
TB50
A multimedia player for scheduled LED signage. Publish content over the network and play it locally without a permanently connected computer.
Specifications
| Pixel capacity | 1,300,000 pixels |
|---|---|
| Maximum width | 4,096 pixels |
| Maximum height | 4,096 pixels |
| LED Ethernet outputs | 2 main × Gigabit RJ45 |
| Processor | Quad-core ARM A55 · 1.8 GHz |
| Memory / storage | 1 GB RAM / 32 GB storage |
| Operating system | Android 11 |
| Network | Gigabit LAN; 2.4 GHz Wi-Fi AP / station |
| Expansion | USB storage up to 128 GB; optional 4G module |
| Ultra-long screen width | 23,040 pixels (ultra-long-screen mode) |

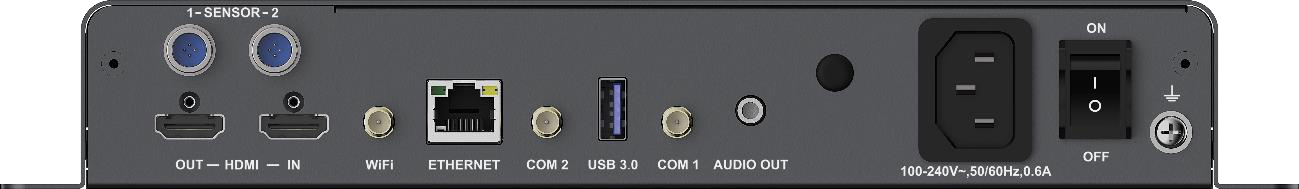

| Inputs | 1 × HDMI 1.3; 1 × USB 3.0 |
Maximum width and height are separate limits; the total pixel capacity also applies. Features depend on firmware and the connected receiving cards.
Matched to your screen.
Share the total pixel resolution, required inputs and application. We check the version and connections that suit your project.
For your quotation
- Screen width, height and pixel pitch
- Sources and required inputs
- Live video, signage or presentations
- Quantity and required delivery date
