AUDIOVISUAL / NOVASTAR
VX600 Pro
LED video processing and display control.

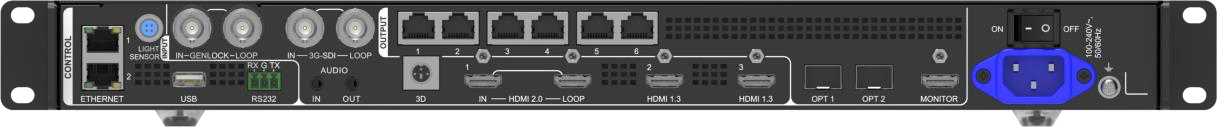

VX600 Pro
Video processing and LED control in one unit, with HDMI and SDI inputs, scaling and layered compositions for live events and installations.
Specifications
| Pixel capacity | 3,900,000 pixels |
|---|---|
| Maximum width | 10,240 pixels |
| Maximum height | 8,192 pixels |
| LED Ethernet outputs | 6 × Gigabit RJ45 |
| Inputs | 1 × HDMI 2.0; 2 × HDMI 1.3; 1 × 3G-SDI; 1 × 10G OPT; 1 × USB 3.0 |
| Layers | 6 × 2K / 1 × 4K + 2 × 2K |
| Presets | 256 |
| Control | NovaLCT / Unico / VICP |
Maximum width and height are separate limits; the total pixel capacity also applies. Features depend on firmware and the connected receiving cards.
Matched to your screen.
Share the total pixel resolution, required inputs and application. We check the version and connections that suit your project.
For your quotation
- Screen width, height and pixel pitch
- Sources and required inputs
- Live video, signage or presentations
- Quantity and required delivery date
