Home/Products/RP Series

RENTAL / LED DISPLAY

RP Series

Premium rental cabinets designed for frequent handling, touring and event production, indoors and outdoors.

PIXEL PITCHIndoor P1.56 / P1.95 / P2.6 / P3.91 · Outdoor P2.97 / P3.91

Request a quotation Download catalogs

WHY THIS SERIES

Designed for the application.

2-in-1 LED options for indoor rental
High refresh rate for camera applications
Curved locks: −5° to +10° assembly
Optional dual-signal input
Front and rear maintenance

Typical applications

Touring stages, concerts, exhibitions, conferences and sports fan zones

AT A GLANCE

Key specifications

Pixel pitch: Indoor P1.56 / P1.95 / P2.6 / P3.91 · Outdoor P2.97 / P3.91
Cabinet format: 500 × 500 / 500 × 1000 × 73.5 mm
Brightness: 700–8,000 nits, by version
Refresh rate: ≥7,680 Hz
Maintenance: Front and rear maintenance

Values describe the series or listed configurations. Confirm the precise model, LED package, control system, IP rating, structure and power requirements for your project.

Download catalogs

Download PDF · RP Indoor · June 2026 Download PDF · RP Outdoor · June 2026 Download PDF · RP Rental · 2026 overview Download PDF · LED Product Catalog 2026

Product details & applications

RP Rental Series · rp outdoor product — RP Rental Series · 01

RP Rental Series · rp curved assembly — RP Rental Series · 02

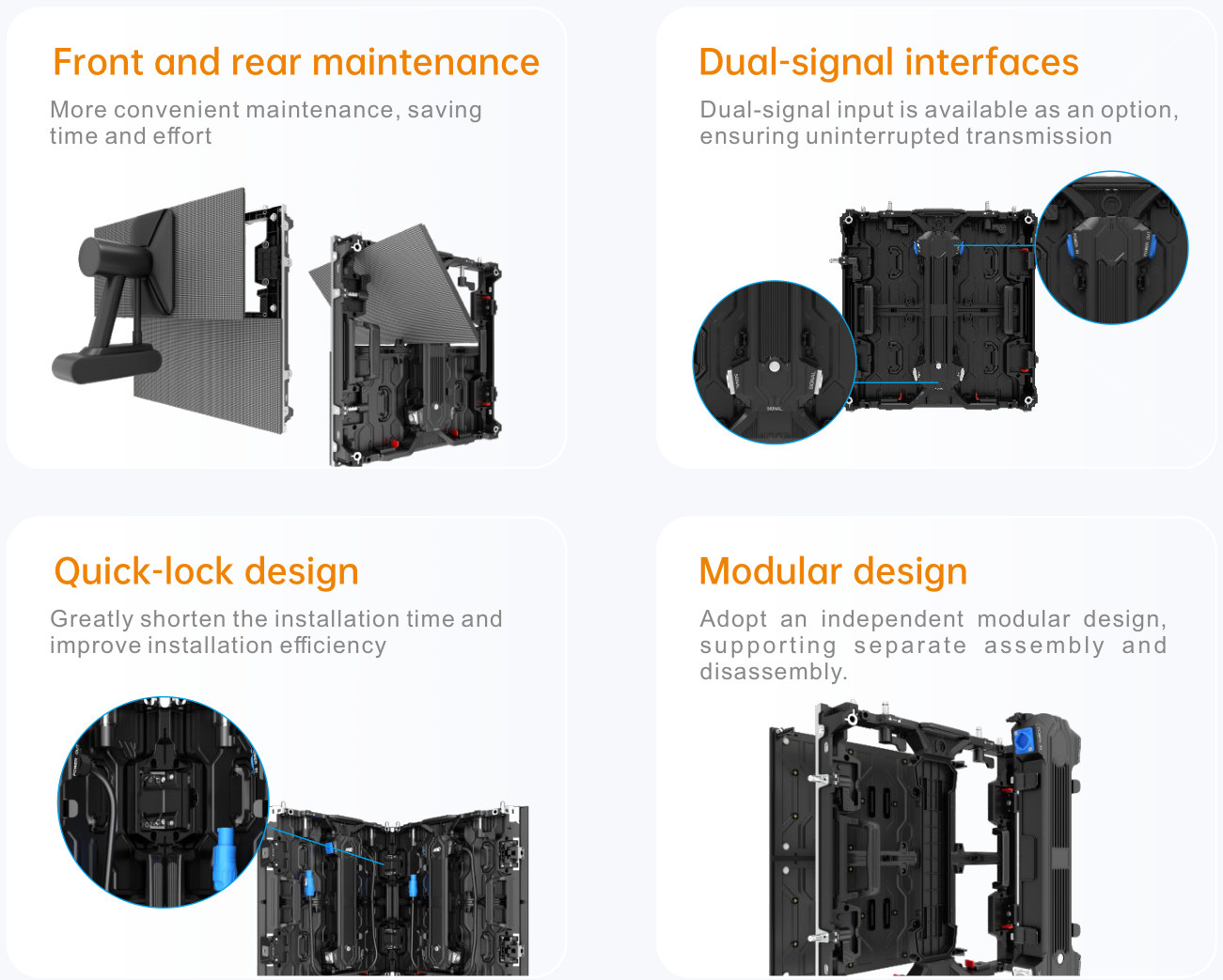

RP Rental Series · rp maintenance — RP Rental Series · 03

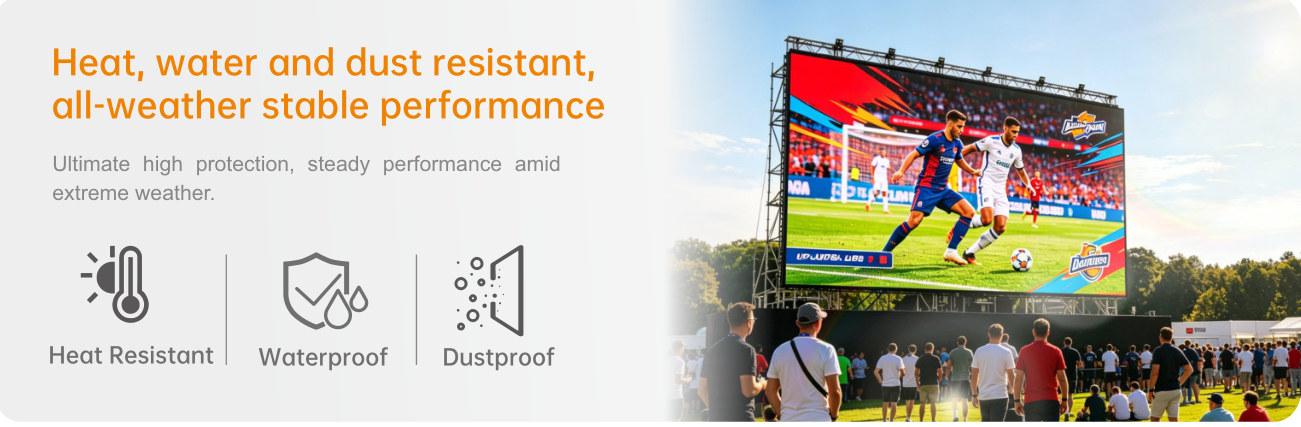

RP Rental Series · rp weather protection — RP Rental Series · 04

RP Rental Series · rp indoor application — RP Rental Series · 05

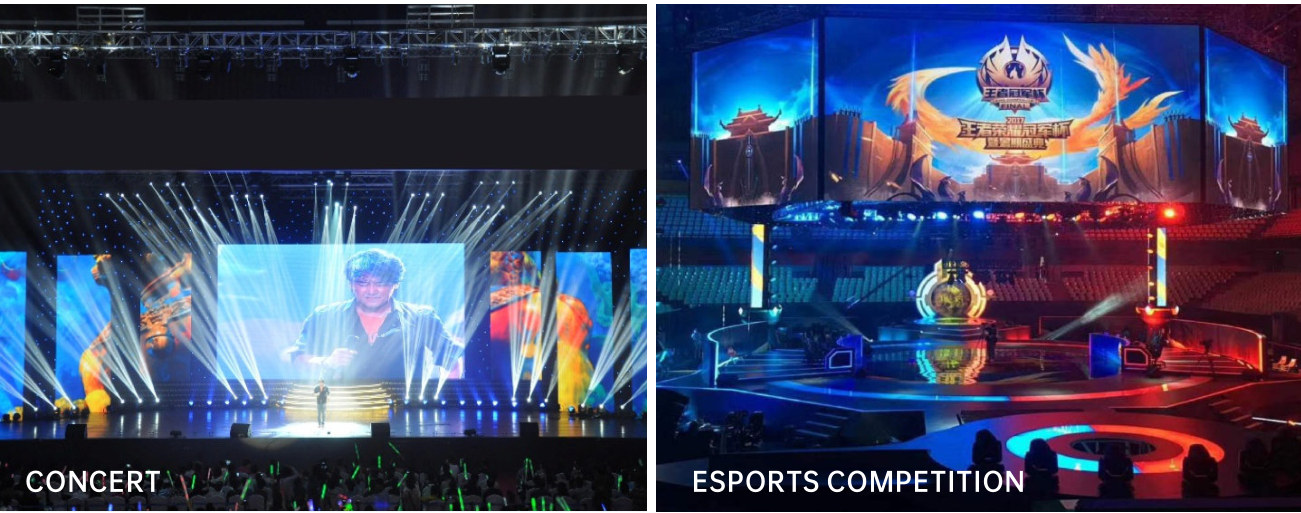

RP Rental Series · rp outdoor application — RP Rental Series · 06

Technical specifications

Specifications depend on the exact version. Confirm the model, LED package and configuration before ordering.

RP Indoor · June 2026

Specification / model	RP1.5 MIP	RP1.5 2-in-1	RP1.9 GOB	RP1.9 2-in-1	RP2.6	RP2.6 2-in-1	RP3.9
Pixel pitch	1.56 mm	1.56 mm	1.95 mm	1.95 mm	2.6 mm	2.6 mm	3.91 mm
LED type	MIP1010	SMD1212 2-in-1	SMD1212	SMD1212 2-in-1	SMD1515	SMD1515 2-in-1	SMD2020
Cabinet dimensions	500 × 500 × 73.5 mm	500 × 500 × 73.5 mm	500 × 500 × 73.5 mm	500 × 500 × 73.5 mm	500 × 500 × 73.5 mm	500 × 500 × 73.5 mm	500 × 500 × 73.5 mm
Cabinet resolution (pixels)	320 × 320	320 × 320	256 × 256	256 × 256	192 × 192	192 × 192	128 × 128
Brightness	1,200 nits	1,000 nits	800 nits	1,000 nits	1,000 nits	1,000 nits	700 nits
Maximum / average power	280 / 100 W/m²	495 / 165 W/m²	650 / 220 W/m²	650 / 220 W/m²	650 / 220 W/m²	650 / 220 W/m²	500 / 170 W/m²
Weight per cabinet	7.5 kg	7.5 kg	7.5 kg	7.5 kg	7.5 kg	7.5 kg	7.5 kg
Protection (front / rear)	IP30 / IP30	IP30 / IP30	IP30 / IP30	IP30 / IP30	IP30 / IP30	IP30 / IP30	IP30 / IP30
Refresh rate	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz
Operating temperature	−10 to +40 °C	−10 to +40 °C	−10 to +40 °C	−10 to +40 °C	−10 to +40 °C	−10 to +40 °C	−10 to +40 °C

Catalog: RP Indoor · June 2026 · PDF

RP Outdoor · June 2026

Specification / model	RPW2.9 white	RPW2.9 black	RPW3.9 white	RPW3.9 black A	RPW3.9 black B	RPW3.9 flip-chip
Pixel pitch	2.97 mm	2.97 mm	3.91 mm	3.91 mm	3.91 mm	3.91 mm
LED type	SMD1415 white	SMD1415 black	SMD1921 white	SMD1921 black	SMD1921 black	SMD2020 full flip-chip
Brightness	4,000 nits	2,500 nits	5,000 nits	3,000–3,500 nits	3,000–4,000 nits	8,000 nits
Maximum / average power	750 / 250 W/m²	850 / 290 W/m²	800 / 265 W/m²	800 / 265 W/m²	800 / 265 W/m²	650 / 220 W/m²
Cabinet dimensions	500 × 500 / 500 × 1000 × 73.5 mm	500 × 500 / 500 × 1000 × 73.5 mm	500 × 500 / 500 × 1000 × 73.5 mm	500 × 500 / 500 × 1000 × 73.5 mm	500 × 500 / 500 × 1000 × 73.5 mm	500 × 500 / 500 × 1000 × 73.5 mm
Cabinet resolution (pixels)	168 × 168 / 168 × 336	168 × 168 / 168 × 336	128 × 128 / 128 × 256	128 × 128 / 128 × 256	128 × 128 / 128 × 256	128 × 128 / 128 × 256
Weight per cabinet	7.3 / 12 kg	7.3 / 12 kg	7.5 / 12.5 kg	7.5 / 12.5 kg	7.5 / 12.5 kg	7.5 / 12.5 kg
Protection (front / rear)	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54	IP65 / IP54
Refresh rate	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz	≥7,680 Hz
Viewing angle (H / V)	160° / 120°	160° / 120°	160° / 120°	160° / 120°	160° / 120°	160° / 120°
Operating temperature	−20 to +50 °C	−20 to +50 °C	−20 to +50 °C	−20 to +50 °C	−20 to +50 °C	−20 to +50 °C

Brightness, LED package and power vary by configuration. The single-page overview lists a smaller selection; use this table for the June 2026 variants.

Catalog: RP Outdoor · June 2026 · PDF

Let’s specify it properly.

Share the application, dimensions, viewing distance and timing. We’ll check the right variant and availability.
